Product Overview

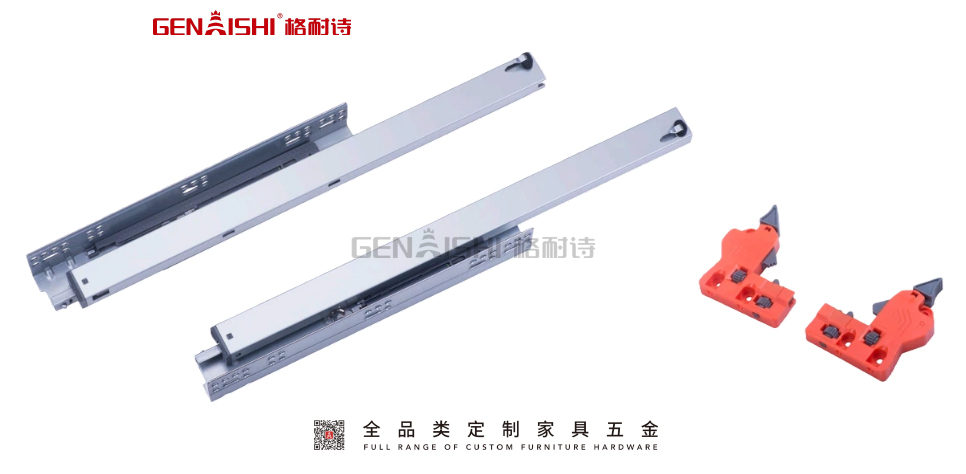

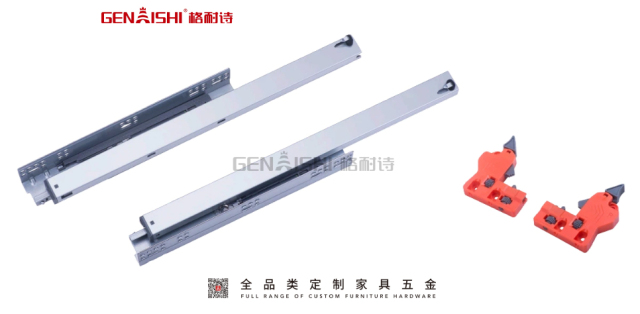

2D Handle Full Extension Undermount Drawer Slide SD-1301F is a mid-range concealed drawer slide system featuring two-dimensional adjustment. Designed for kitchen cabinets, wardrobes, and commercial furniture, it balances installation flexibility with cost-effectiveness, delivering smooth operation and a clean, hidden appearance.
Key Features
Full Extension Design: 100% full extension provides complete access to the entire drawer interior
2D Adjustable Handle: Two-dimensional (height + depth) adjustment for precise alignment during installation
Soft Close Option: Built-in hydraulic damper ensures whisper-quiet, gentle closing every time
Push Open Option: Touch-release mechanism enables handle-less, modern cabinet designs
Synchronized Option: Synchronized sliding rails for smoother, more stable drawer movement
35kg Load Rating: Heavy-duty capacity suitable for both residential and light commercial use
Hidden Undermount Installation: Fully concealed when drawer is closed for a seamless, premium look
Technical Specifications
| Parameter | Details |
|---|---|
| Model | SD-1301F |
| Material | High-grade cold-rolled steel |
| Thickness | 1.01.51.8mm |
| Length | 10" - 24" (250mm - 600mm) |
| Load Capacity | 35kg / 77lbs per pair |
| Installation | Undermount (concealed) |
| Extension | Full extension |
| Adjustment | 2D (height + depth adjustment) |
| Finish | Zinc plated (corrosion-resistant) |
