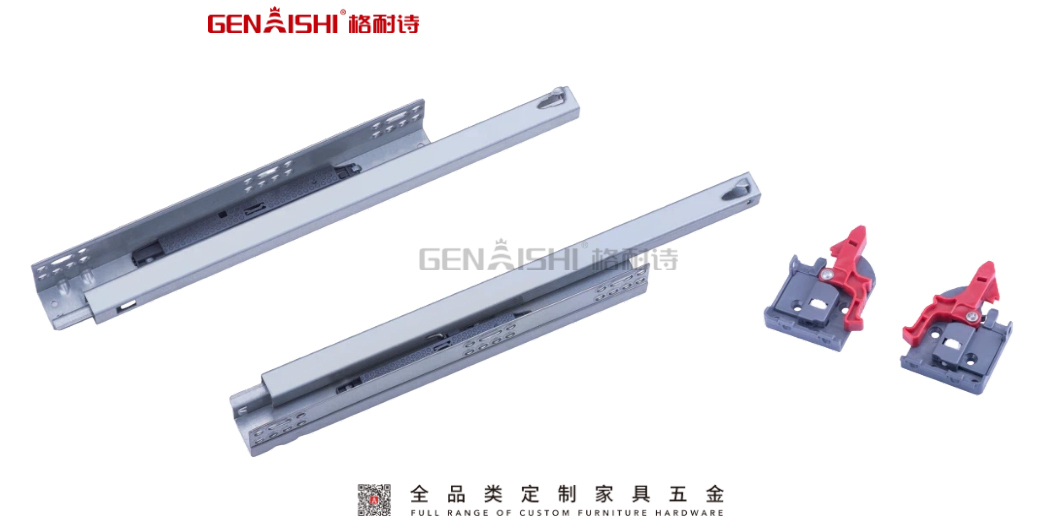

3D Handle Full Extension Undermount Slide SD-1301T

Key Features

• Full Extension Design: 100% full extension allows complete access to the entire drawer space
• 3D Adjustable Handle: Three-dimensional adjustment for perfect alignment and easy installation
• Soft Close Option: Hydraulic damping system ensures gentle, quiet closing every time
• Push Open Option: Handle-less push-to-open mechanism for a sleek, modern look
• Synchronized Option: Synchronized movement for smoother, more stable drawer operation
• Heavy Duty Capacity: 35kg load rating per pair, suitable for most residential and commercial applications
• Concealed Undermount: Hidden from view when drawer is closed, provides clean aesthetic


  Parameter	Details
  Model	SD-1301T
  Material	High-grade cold-rolled steel
  Thickness	1.01.51.8mm
  Length	10" - 24" (250mm - 600mm)
  Load Capacity	35kg / 77lbs per pair
  Installation	Undermount (concealed)
  Extension	Full extension
  Finish	Zinc plated (anti-corrosion)

Available Configurations

• Function Options:
  • Soft close
  • Push open (rebound)
  • Soft close + push open combined
• Movement Options:
  • Synchronized
  • Non-synchronized

Applications

• Kitchen cabinets
• Bedroom wardrobes
• Bathroom vanities
• Office furniture
• Custom cabinetry
• Residential and commercial projects
